In modern industrial automation, transmitting digital and analog signals over long distances through harsh, noise-heavy environments is a constant engineering challenge. Traditional point-to-point wiring is expensive, complex to troubleshoot, and prone to electromagnetic interference (EMI).
The Carlo Gavazzi Dupline® Fieldbus system solves these infrastructure bottlenecks. Renowned for its unique ability to transmit data over kilometers using a simple, unshielded twisted pair cable, the Dupline system is heavily utilized in building automation, water treatment, mining, and conveyor systems.

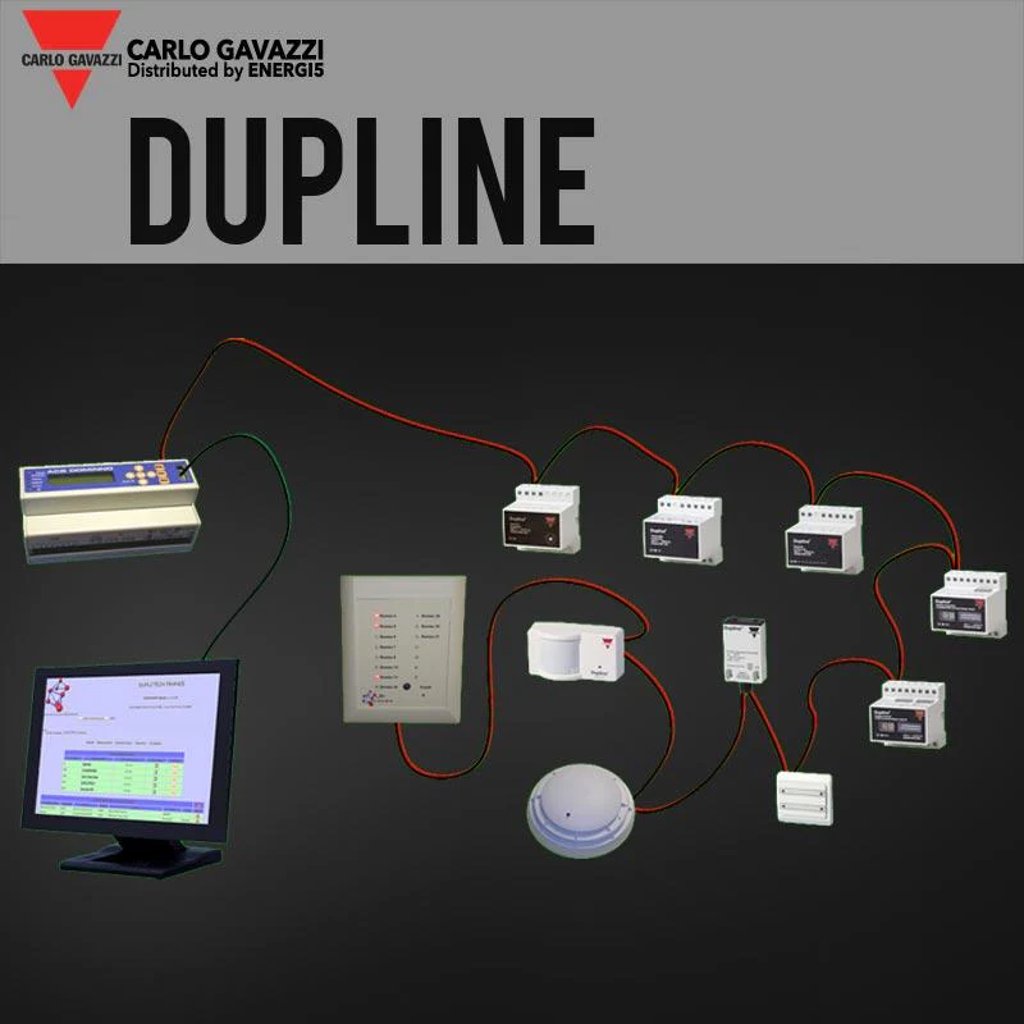

This technical guide breaks down the core architecture of the Dupline network and examines the essential hardware components—from gateways and repeaters to bus modules and diagnostic tools—needed to build a resilient field network.
1. Network Backbone: Dupline Gateways and Channel Generators
At the core of every Dupline network is the master configuration unit, which manages the bus topology, generates the carrier signal, and bridges field data to high-level control systems like PLCs, SCADA, or DCS.
Channel Generators: The G33900000800A acts as the heartbeat of the network, generating the specific multiplexed audio-frequency signal that allows up to 128 channels to coexist safely on a single two-wire bus.
Fieldbus Gateways: To interface with field devices over Modbus, Profibus, or Ethernet protocols, dedicated gateways are utilized. Models like the SD2DUG24, GRPG-I, GS38910125230, and GS33910060800 translate the internal Dupline data map into standardized industrial protocols. For legacy or targeted installations, the G38910050230 and G38910020230 deliver robust communication bridging with high optical isolation to safeguard the central control room.
2. Signal Transmission: Repeaters and Terminators
As a bus network expands physically across massive manufacturing plants or infrastructure sites, signal degradation and reflections become a risk.
Dupline Repeaters: When transmission distances exceed standard limits, repeaters like the SB2REP230 and GS38920000230 regenerate and amplify the bus signal, effectively doubling the network range while maintaining precise timing synchronizations.
Line Terminators (End-of-Line Devices): To suppress high-frequency signal reflections back down the bus line, installing a line terminator such as the DT01 at the furthest point of the physical cable is critical. The DT01 ensures clean square-wave signal profiles and prevents data corruption.
3. Field Device Integration: Input, Output, and Bus Modules
The physical interface with sensors, limit switches, relays, and actuators is handled by distributed field modules. These units are directly loop-powered by the Dupline signal wire or externally powered depending on the load.
Input Modules: For discrete sensor mapping, the G50101106 single-channel input module and G50102206 dual-channel input module offer compact form factors designed for localized digital signal collection.
Standard Field Modules: Versatile I/O blocks like the GS75102192, GS75102101, G88301143, and G88102201 permit flexible DIN-rail distribution across remote junction boxes.
High-Load and Specific Application Modules: Units such as the GS38300143230, G34305545230, and G34301149230 combine standard Dupline monitoring logic with localized power switching or monitoring functions.
Dedicated Bus Modules: The G34960005700 and G34900000824 serve as specialized transceiver interfaces, allowing third-party machinery or localized sub-networks to hook directly onto the main Dupline loop seamlessly.
4. Commissioning and Diagnostic Tools
One of the greatest operational benefits of the Dupline system is its ease of commissioning and straightforward troubleshooting mechanics.
Coding & Programming Tools: Unlike complex software-driven fieldbuses that require intensive programming, Dupline addresses are assigned directly to modules using hardware tools. The GS73800080 coding tool allows quick desktop or field configuration of module addresses before or during installation.
Handheld Testers and Hand操器: For on-site maintenance teams, the GAP1605 hand-held programmer/tester and the GTU8 fieldbus test tool are invaluable. These devices let technicians tap directly into the two-wire bus at any point to read channel statuses, force outputs for verification, and locate wiring faults or short circuits in minutes.
Why Engineers Choose Dupline Fieldbus Architecture
Extreme Noise Immunity: The low-frequency, narrow-band transmission method makes it immune to the intense VFD and motor switching noise that typically disrupts standard RS485 or Ethernet lines.
No Shielding Required: Dupline operates smoothly over standard, unshielded cables, drastically reducing raw material and installation labor costs.
Topology Freedom: It supports star, ring, tree, or daisy-chain layouts without requiring complex network calculation formulas.
